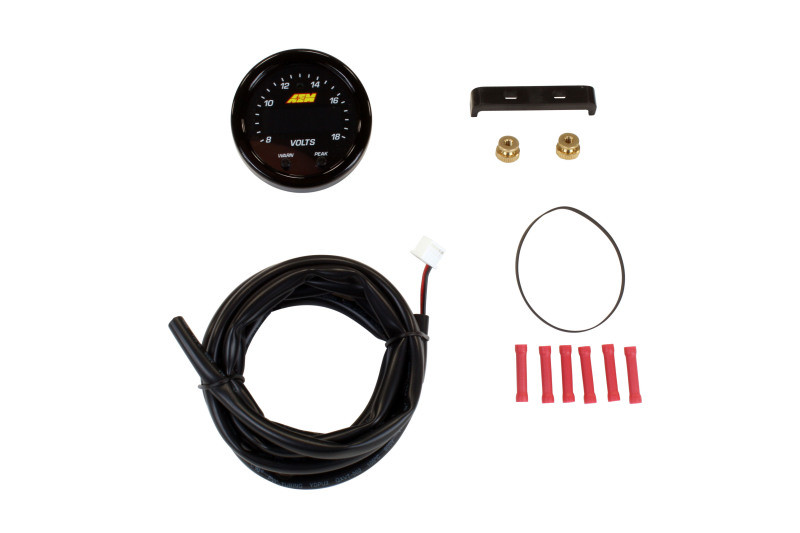

AEM 30-0303 X-Series Volt Gauge, 8-18V

Description

30-0303 is an AEM X-Series digital volt gauge that reads 8-18V. It comes with a black bezel and black faceplate.

X-Series digital gauges are set up with two buttons on the faceplate, which give the volt gauge peak recall.

The gauge is AEMnet CAN bus enabled, so several gauges can be daisy chained to an AEM Infinity ECU, Series 2 EMS, AQ-1 data logger or a third-party EMS or logger that accepts AEMnet. A 0-5V analog output is included for data loggers and engine management systems.

AEM X-Series Gauge Features:

• Slim 0.825" overall gauge depth and 0.200" cup depth - mount them virtually anywhere
• Optional silver bezel with white faceplate accessory kit available (sold separately)
• AEMnet CANbus-enabled for transmitting data to EMS or Data Logger
• 0-5v analog outputs for transmitting data to EMS or Data Logger
• 2-1/16th (52mm) gauge diameter for easy mounting in gauge pods
• 24 green outer LEDs for quick reference to system voltage
• Programmable LED is 87% larger than original AEM gauges
• Positive locking connectors provide secure connection
• Auto dimming sensor delivers ideal display brightness
• Peak/Recall via gauge face buttons
