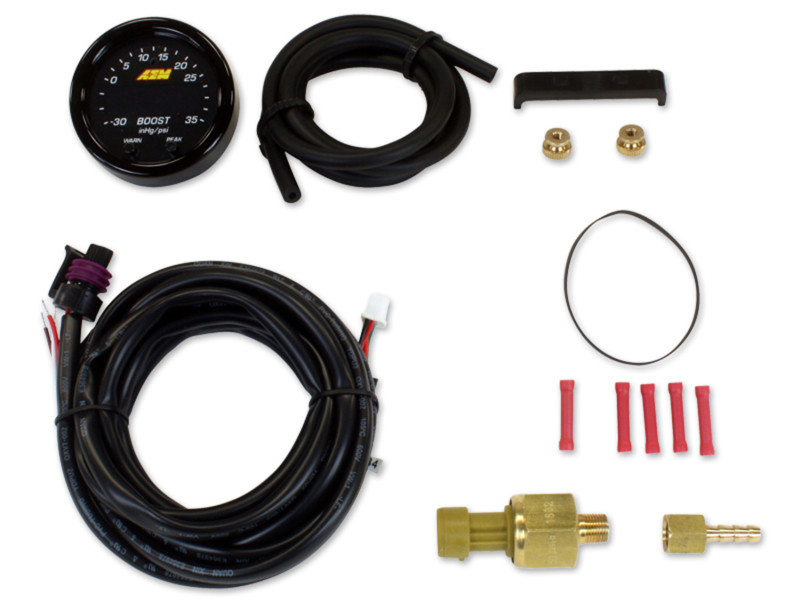

AEM 30-0308 X-Series Boost Pressure Gauge, -30inHg to 60psi

Description

30-0308 is an AEM X-Series digital boost gauge that reads -30inHg to 60psi (-1 to 4 bar). It comes with a black bezel and black faceplate.

X-Series digital gauges are set up with two buttons on the faceplate. They give you peak recall, a standard or metric readout on the center LED display and sweeping LED needle, and user-selectable threshold warnings.

The gauge is AEMnet CAN bus enabled, so several gauges can be daisy chained to an AEM Infinity ECU, Series 2 EMS, AQ-1 data logger or a third-party EMS or logger that accepts AEMnet. A 0-5V analog output is included for data loggers and engine management systems.

AEM X-Series Gauge Features:

• Optional silver bezel with white faceplate accessory kits available (sold separately)
• Slim 0.825" overall gauge depth and 0.200" cup depth - mount them virtually anywhere
• User selectable standard or metric display ( -30in/Hg~60PSI / -1~4BAR)
• AEMnet CANbus-enabled for transmitting data to EMS or Data Logger
• 0-5v analog outputs for transmitting data to EMS or Data Logger
• 2-1/16th (52mm) gauge diameter for easy mounting in gauge pods
• Programmable center LED is 87% larger than original AEM gauges
• 24 green outer LEDs for quick reference to engine parameter
• Auto dimming sensor delivers ideal display brightness
• Positive locking connectors provide secure connection
• User selectable threshold warnings
• Peak/Recall via gauge face buttons
