DESCRIPTION

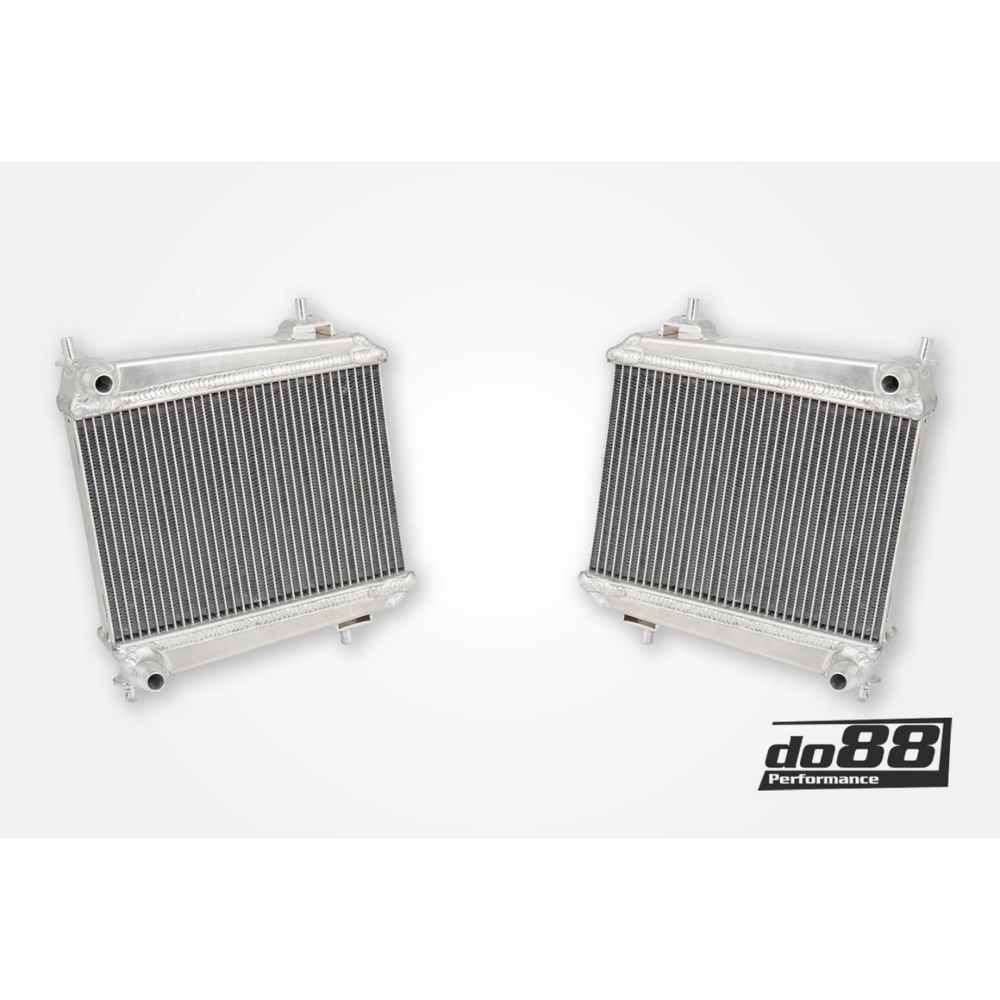

Upgrade engine cooling components with the do88 Aluminum Radiator. WC-410 fits BMW G‑Series B58 / Toyota GR Supra MK5 (A90).
Upgrade the performance of your B58 Gen 2 engine with the do88 Performance Auxiliary Radiators!
The B58 Engine Cooling System
The B58 engine features a cooling system with three frontal radiators, one large central radiator and two smaller auxiliary radiators located in front of each wheel. Tuned engines produce significantly more heat, making it challenging to maintain optimal engine temperatures during intense street, track, or drag strip driving. The OE auxiliary radiators have slim cores and plastic tanks, which are not ideal for tuned cars. Upgrading these auxiliary radiators will help to ensure proper engine temperature.
Our Solution
Fortunately, the design space available for the auxiliary radiators allows for both increased frontal surface area and core thickness on both sides of the car. The OE radiator is identical for both sides, and our do88 Performance Radiators are designed to be drop-in replacements for both left and right sides. We offer them as a pair because upgrading just one radiator isn't as effective as upgrading both simultaneously. Our Performance Auxiliary Radiators provide enhanced cooling capacity to prevent heat soaking. Key features include:
- Larger core volume than the original equipment (OE).
- Dual-row core with a thickness of 40 mm.
- Full aluminum construction, complete with durable TIG-welded end tanks.
- Increased fluid capacity for optimal heat dissipation.
Installation
The installation is simple, as our radiators come with CNC-machined mounting brackets and OE-style “Quick Connect” inlet/outlet connections. The OE rock guard can be easily attached to our radiators for protection against small rocks and road debris.
OE Reference Numbers:
17118672237
16400-WAA04
Vehicle Fitment:
Model: Toyota GR Supra MK5 (A90)
Model Years: 2020–
Engine: B58
Model: BMW 2-Series M240i / M240iX (G42)
Model Years: 2022–
Engine: B58
Miscellaneous: Only suitable for cars with a remote radiator (17118672237) on the right side from factory. This is included in the M Technology Package with option code: 33T
Model: BMW 3-Series M340i / M340iX (G20, G21)
Model Years: 2018–
Engine: B58
Miscellaneous: Only suitable for cars with a remote radiator (17118672237) on the right side from factory. This is included in the M Technology Package with option code: 33T
Model: BMW 4-Series M440i / M440iX (G22, G23, G26)
Model Years: 2021–
Engine: B58
Miscellaneous: Only suitable for cars with a remote radiator (17118672237) on the right side from factory. This is included in the M Technology Package with option code: 33T
Model: BMW Z4 M40i (G29)
Model Years: 2017–
Engine: B58
Miscellaneous: Only suitable for cars with a remote radiator (17118672237) on the right side from factory. This is included in the M Technology Package with option code: 33T
