DESCRIPTION

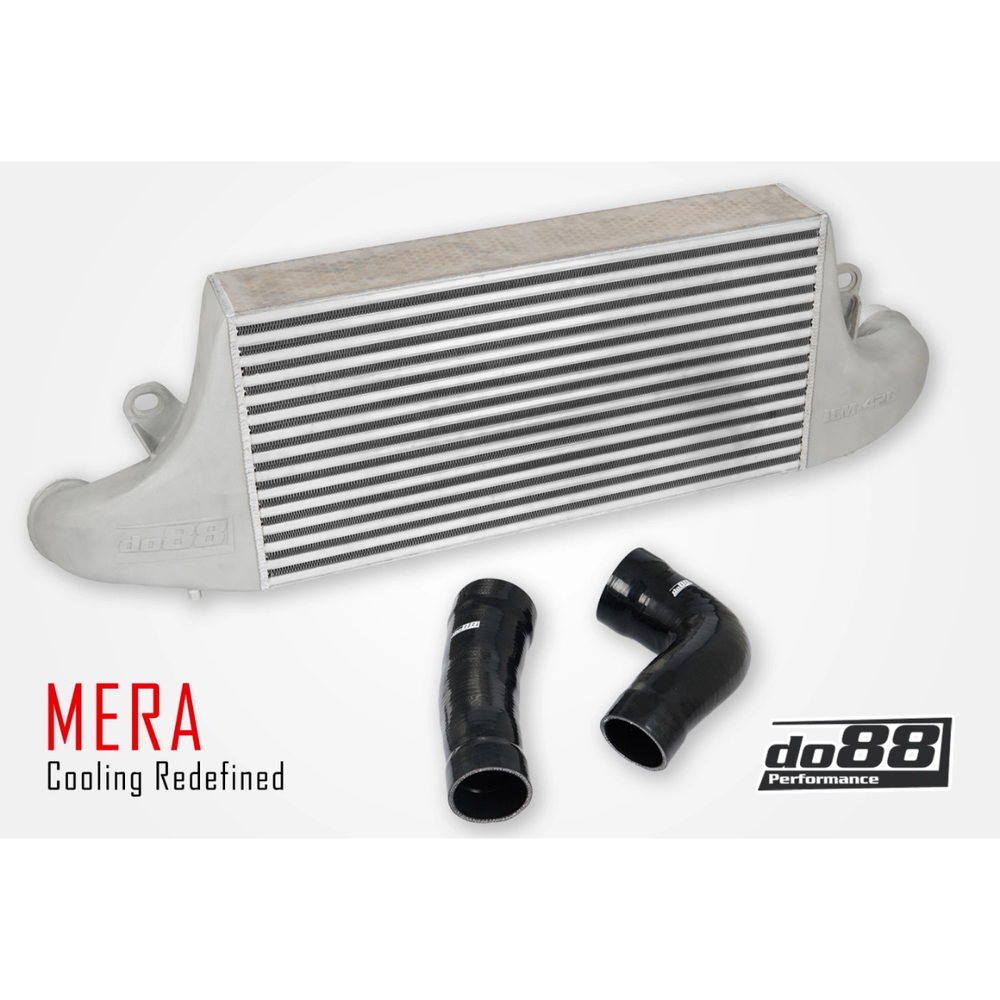

Upgrade charge-air cooling with the do88 Intercooler. ICM-420 fits Audi RS3 2.5T (8V/8Y).
Upgrade the performance of your Audi RS3 8V/8Y with the do88 Performance Intercooler Kit!
Key advantages:
- Core volume: 18,102 cm³ (OEM: 8,307 cm³), 118% larger
- Active cooling area: 1,866 cm² (OEM: 1,038 cm²), 80% larger
- Inlet air temperature reduction: 23°C (OEM: 55°C), 32°C lower
- Airflow at 0.125 bar / 1.81 psi pressure drop: 526 CFM (OEM: 432 CFM), 22% higher
- High-density Garrett Motorsport Bar & Plate core, rated up to 1,000 HP
- 3D, freeform-designed cast end tanks
- Chromoly crash beam allowing unrestricted ambient airflow
- Custom silicone hoses included for OEM charge pipe compatibility
- Easy installation, no modifications required (except TTRS)
MERA Performance: MERA stands for more cooling, better airflow, more performance. The kit includes enlarged 80 mm hose connections, carbon fiber ambient air guides, and optimized airflow design for maximum efficiency under all conditions. Tested for significant reductions in intake temperature and improved acceleration performance on track.
OE Reference Numbers:
8V0145803B
8V0145746B
8V0145745B
8V4807109B
Vehicle Fitment:
Model: Audi RS3 Sportback (8V)
Model Years: 2016–
Engine: 2.5 TFSI / 362hp / CZGB
Model: Audi RS3 Sportback/Sedan (8V)
Model Years: 2017–
Engine: 2.5 TFSI / 400hp / DAZA
Model: Audi RS3 Sportback/Sedan (8Y*)
Model Years: 2021–
Engine: 2.5 TFSI / 400hp / DNWA
TECHNICAL DETAILS
