DESCRIPTION

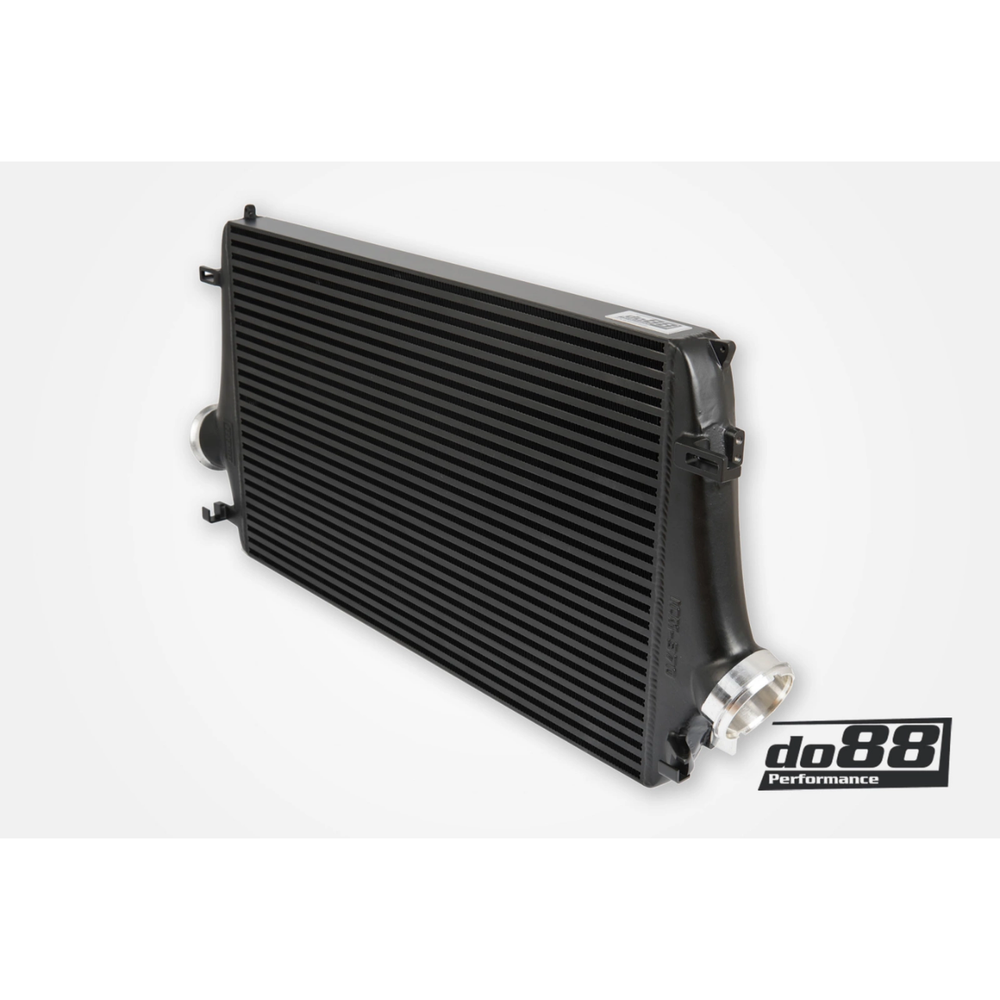

Upgrade charge-air cooling with the do88 Intercooler. ICM-370-Insignia fits Opel Insignia A 2.0T/2.8T (2008–2017).
do88 performance intercooler designed for an easy drop-in fitment in your Opel Insignia A and Buick Regal!
Key advantages over OE intercooler:
- Core volume: 14,048 cm³ (OE: 7,735 cm³), 81% larger
- Frontal cooling area: 2,810 cm² (OE: 2,417 cm²), 16% larger
- Airflow at 0.15 bar / 2.18 psi pressure drop: 410 CFM (OE: 339 CFM), 21% higher
- Post-intercooler air temperature: 22°C (OE: 35°C), 13°C lower
Constructed from high-quality aluminum with continuous welds, this intercooler ensures maximum reliability and endurance under demanding conditions. The cast end tanks are optimized for airflow and include machined mounting points for the AC condenser and radiator. CNC-machined connections match the OE layout for a straightforward drop-in installation. The system has been validated with CFD simulations and Superflow SF1020 flowbench testing to guarantee excellent cooling performance and low pressure drop.
The 81% larger core volume provides improved performance across the entire power band. Cooler intake temperatures during repeated full-throttle runs ensure consistent engine output and reliability, even on standard, non-tuned cars.
All necessary hardware for installation, including bolts, washers, and instructions, are included. No modifications to the car’s original structure are required.
Kit Contents:
- Intercooler
- Mounting hardware (bolts, washers)
OE Reference Numbers:
13241751
1302647
Vehicle Fitment:
Model: Opel Insignia A
Model Years: 2008–2017
Engine: 2.0T / 2.8T / 2.0TiD / 2.0TTiD
Miscellaneous: Displacement over 2.0 liters
Model: Buick Regal
Model Years: 2011–2017
Engine: 2.0T
Miscellaneous: Displacement over 2.0 liters
