DESCRIPTION
Upgrade charge-air piping with the do88 Intercooler Piping Kit. TR-410 fits BMW F/G-Series B58 Gen 1.
Upgrade your engine with the do88 charge pipe kit for B58 Gen 1 found in BMW M240i, 340i and 440i and more!
BMW often uses plastic for their OEM charge pipes. This choice, although cost-effective for the manufacturer, isn't always suitable for handling pressurized air. As the plastic ages or if the boost in your car increases, these pipes are prone to failure.
A failing charge pipe can result in reduced power, known as limp mode, or the car might shut down entirely, requiring the pipe to be replaced before it can start again. This could potentially leave you stranded.
Many aftermarket charge pipe kits for the B58 engine are available, but in our opinion, most are not properly designed. Many competitors use a basic design: two pipes joined by a straight reducing silicone hose. It's evident they haven't understood the importance of handling the thermal movement in this system. Such design is almost certain to cause problems with the hose popping off because it does not allow movement from temperature changes. A common solution people think of is tightening the clamps more, but this will in most cases break the pipes since it will deform the clamping surface.
But we've taken a different approach at do88. For us it was clear the system needs a flexible connection in-between the two pipes which can handle the thermal expansion/contractions. Our solution is an aramid reinforced silicone hose with 3-humps. This hose design allows movement in any direction without folding or putting the connections under stress. To further strengthen our design, the pipes have CNC-machined 6063 hose connection ends with 3mm wall thickness. These hose connections won’t deform even with overtightened hose clamps.
Our charge pipes don’t only solve durability but also improve performance. We designed our pipes with a larger diameter and smooth mandrel bends to enhance performance. The lower pipe measures 60mm (2 3/8") and the upper pipe 76mm (3"), effectively reducing pressure drop and cutting down on turbulence.
Our charge pipe, which connects to the throttle body via its CNC machined flange, has two 1/8 NPT ports suitable for methanol injection or outlets like a boost pressure sensor. Additionally, we provide two 1/8 NPT plugs for those who choose not to use these ports.

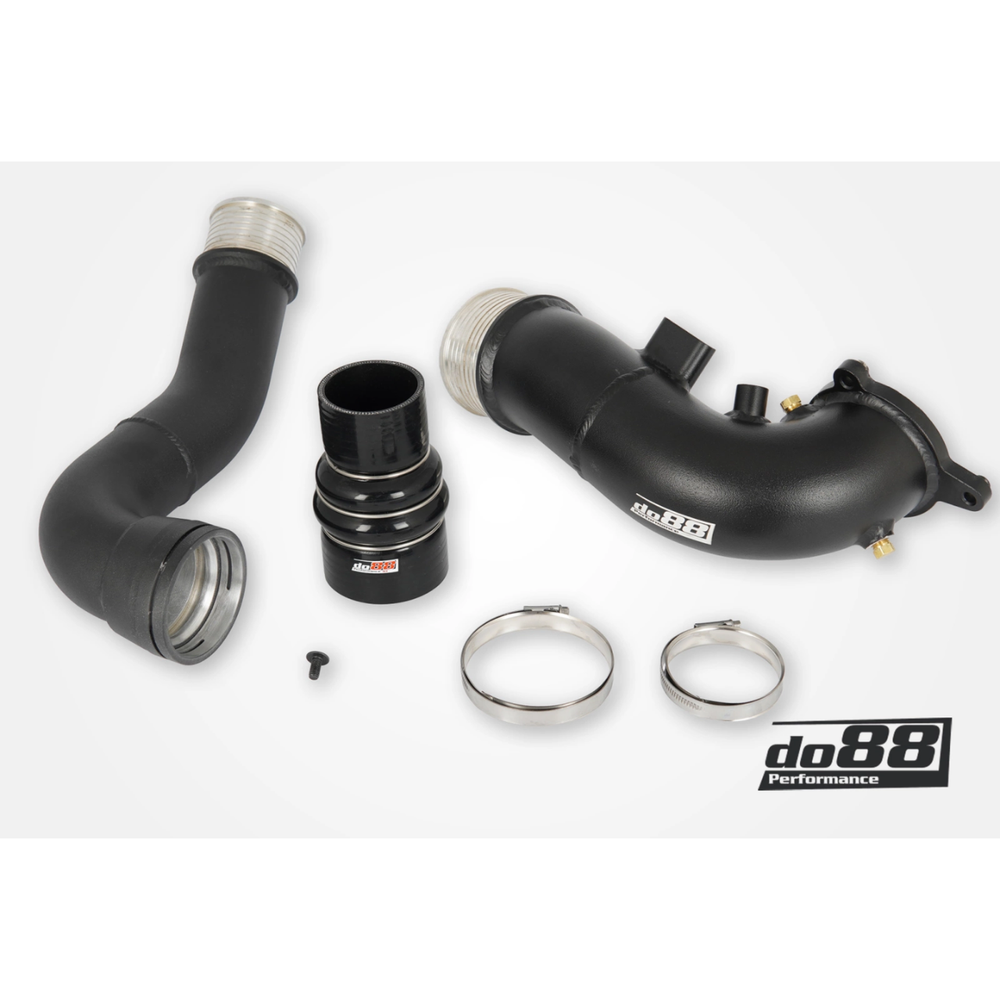

Kit Contents:
- Flexible hose connection in-between upper and lower charge pipes allowing movement which prevents the hose from popping off.
- Special designed 3-humped reduced silicone hose reinforced with high temperature rated aramid fabric and outer stainless-steel rings.
- Super high quality hose clamps from Mikalor included. These clamps are fitted with an inner-ring inside the clamp that prevents damage to the hose and distributes the pressure evenly around the hose.
- Better air flow and less backpressure for your engine!
- 23% more flow than OEM, with 649 CFM @ 150mbar (2.17psi) compared to the OEM 528 CFM.
- CNC machined hose connections with matching inner diameter to the pipe, providing a deformation-safe hose clamping surface.
- CNC machined MAP sensor boss, turbo and throttle body connections.
- CNC-machined (2x) 1/8 NPT connections, perfect for methanol injection or as outlets for example boost pressure sensor.
- Two 1/8 NPT plugs are included if you don't use the ports.
- Mandrel-bent 60mm (2 3/8") and 76mm (3") charge pipes coated in a stylish black powder coat.
- Does not interfere with the engine cover.
- Includes all hardware and instructions for complete installation.
OE Reference Numbers:
13718601684
Vehicle Fitment:
Model: BMW 1' M140i M140iX (F20 F21)
Model Years: 09/2015 -
Engine: B58 Gen 1
Model: BMW 2' M240i M240iX (F22 F23)
Model Years: 09/2015 -
Engine: B58 Gen 1
Model: BMW 3' 340i 340iX (F30 F31 F34)
Model Years: 10/2014 -
Engine: B58 Gen 1
Model: BMW 4' 440i 440iX (F32 F33 F36)
Model Years: 03/2015 -
Engine: B58 Gen 1
Model: BMW 5' 540i 540iX (G30 G31)
Model Years: 10/2015 -
Engine: B58 Gen 1
Model: BMW 6' 640i 640iX (G32)
Model Years: 09/2016 -
Engine: B58 Gen 1
Model: BMW 7' 740i 740iX (G11 G12)
Model Years: 10/2014 -
Engine: B58 Gen 1
Model: BMW X3 M40iX (G01)
Model Years: 10/2016 -
Engine: B58 Gen 1
Model: BMW X4 M40iX (G02)
Model Years: 03/2017 -
Engine: B58 Gen 1
