DESCRIPTION

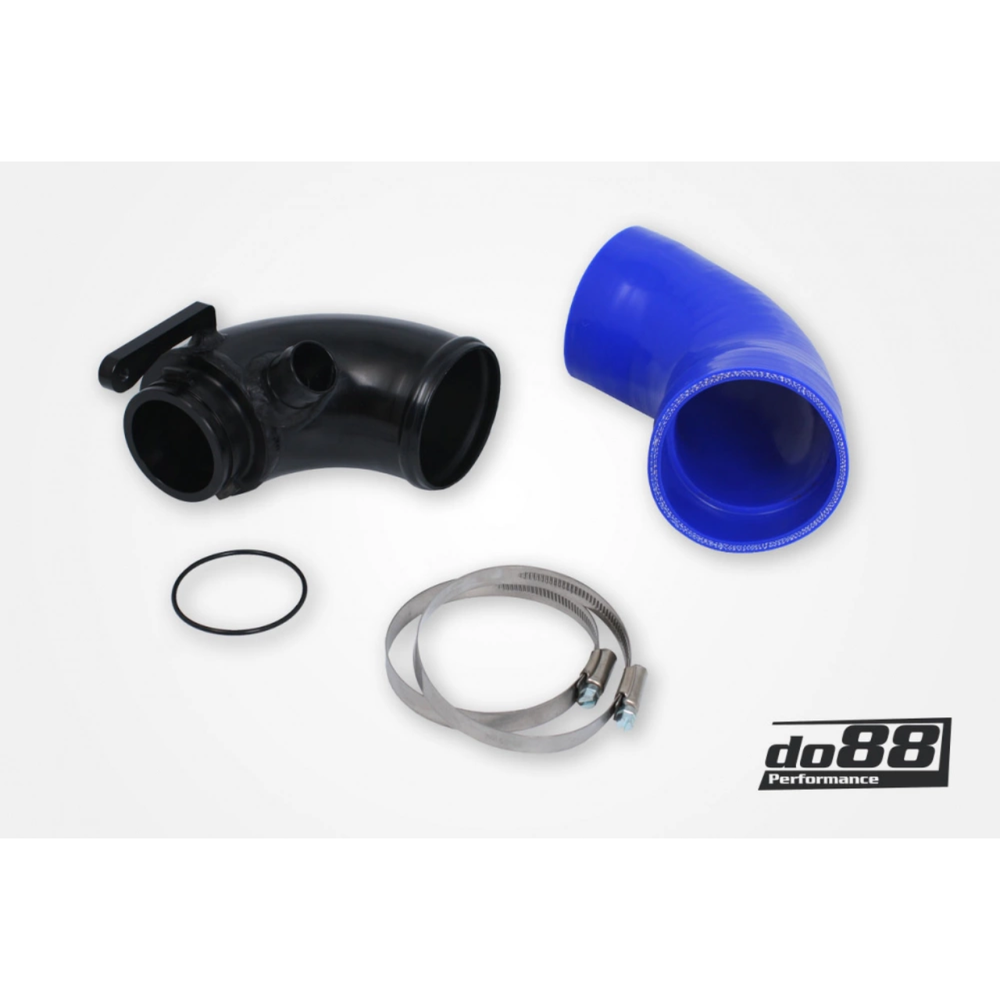

Upgrade inlet system components with the do88 Inlet Pipe Kit. IR-130B-48-DO88 fits VAG 1.8/2.0 TSI (MQB) – OEM Turbo.
High-performance turbo inlet, designed by do88 for easy drop-in fitment on MQB-platform vehicles!
Significant advantages with the do88 turbo inlet pipe (OEM comparison):
- Larger diameter: 76 mm (OEM 70 mm), providing 35% larger flow area
- Airflow at 75 mbar / 1.09 psi pressure drop: 514 CFM (OEM 410 CFM) – 25% higher flow
- CNC-machined turbo flange with flow-optimized radius
- Flow-optimized silicone hose with stepped internal diameter to reduce turbulence
- Steel wire–reinforced silicone hose for OEM or do88 airbox lid
- Compatible with OEM turbochargers and hybrid turbos with 53 mm inlet diameter
- Straightforward installation with clear instructions included
This turbo inlet pipe is engineered for maximum airflow to the turbocharger. Improved airflow increases efficiency and power output. The inlet pipe is constructed from aluminum and features a CNC-machined turbo flange, PCV port, and mounting bracket.
The OEM turbo inlet pipe and hoses are designed for factory power levels. Increased power can exceed their capacity, restricting airflow. Even with just an ECU software tune, the do88 turbo inlet pipe delivers a measurable performance gain over the OEM setup.
This product includes all components required for a clean installation without cutting or modifying the vehicle. All mounting hardware and installation instructions are included.
OE reference numbers:
5Q0 129 654 P
5Q0 129 654 AE
5Q0 129 654 L
5Q0 129 635 L
5Q0 129 635 P
5Q0 129 635 Q
5Q0 129 634 P
Important note:
This product will NOT fit vehicles equipped with an air mass meter (MAF).
Vehicle Fitment:
Model: VW Golf (MK7 / MK7.5)
Model years: 2013–2020
Variants: GTI, R, Clubsport, ED40, Golf, Sportwagen
Engine: 1.8 TSI, 2.0 TSI
Turbo: IS12, IS20, IS38
Model: VW Passat (3G)
Model years: 2015–2024
Engine: 1.8 TSI, 2.0 TSI
Turbo: IS20, IS38
Model: VW Tiguan (MK2)
Model years: 2016–2023
Engine: 2.0 TSI
Turbo: IS20, IS38
Model: VW Arteon
Model years: 2017–2023
Engine: 2.0 TSI
Turbo: IS20, IS38
Model: VW Jetta GLI (MK7)
Model years: 2019–present
Engine: 2.0 TSI
Turbo: IS20, IS38
Model: Audi A3 / S3 (8V)
Model years: 2012–2020
Engine: 1.8 TFSI, 2.0 TFSI
Turbo: IS20, IS38
Model: Audi TT / TTS (8S)
Model years: 2015–2023
Engine: 1.8 TFSI, 2.0 TFSI
Turbo: IS20, IS38
Model: SEAT León / Cupra (MK3)
Model years: 2013–2020
Engine: 1.8 TSI, 2.0 TSI
Turbo: IS20, IS38
Model: SEAT Ateca / Cupra (MK1)
Model years: 2016–present
Engine: 1.8 TSI, 2.0 TSI
Turbo: IS20, IS38
Model: Skoda Octavia / VRS (MK3)
Model years: 2013–2020
Engine: 1.8 TSI, 2.0 TSI
Turbo: IS20, IS38
Model: Skoda Superb (B8)
Model years: 2015–2023
Engine: 1.8 TSI, 2.0 TSI
Turbo: IS20, IS38
