DESCRIPTION

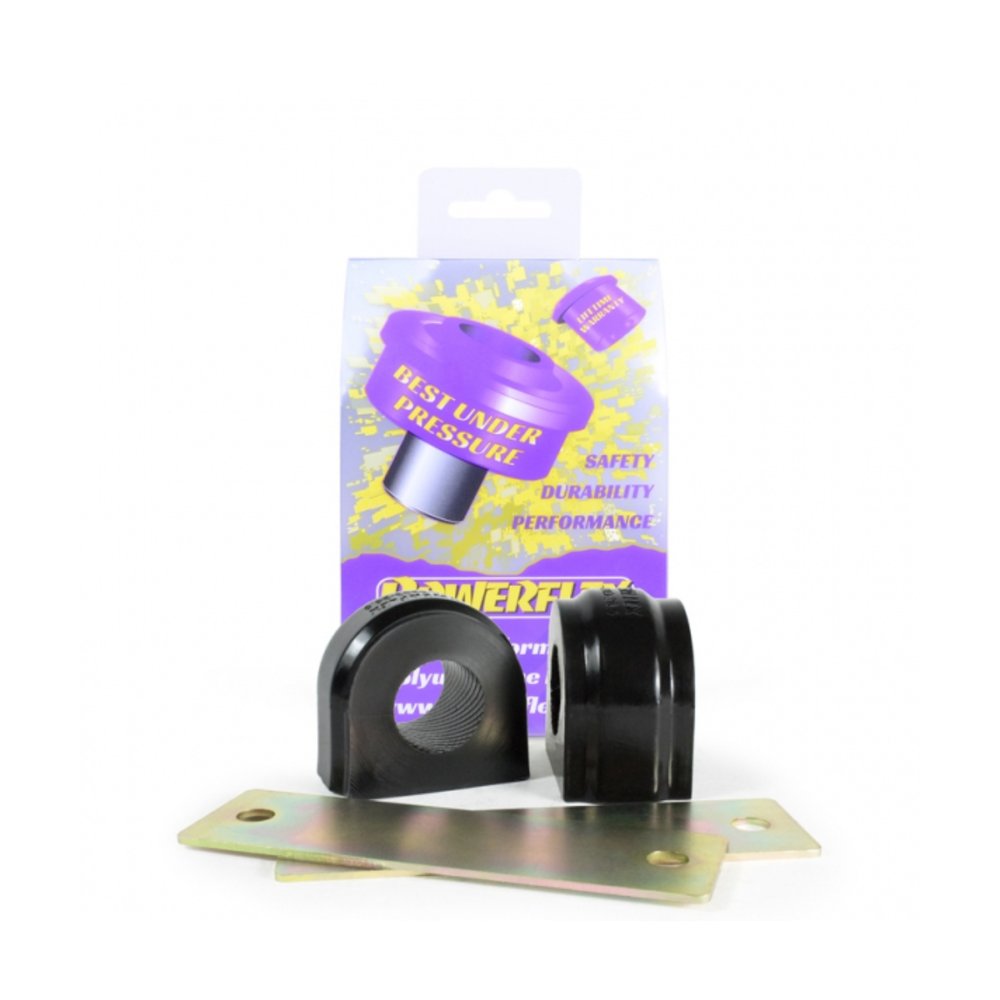

Improve your BMW's handling performance, steering precision and gearbox shifting with a Powerflex PFF5-4203-29 bushing. PFF5-4203-29 fits models in Position #3 in the Bushing Position Diagram below.
The aluminum front subframe fitted to the E60/61 M5 and E63/E64 M6 is prone to failure at the point where the sway bar bracket clamps to the subframe. Once this point starts to weaken and bend, it can lead to the subframe tab fracturing or the bushing clamp cracking. Our new ARB bushing kits include Black 95A durometer bushings and a high-grade zinc-coated steel plate to strengthen the frame, providing the ultimate in the sway bar location and body-roll reduction. FEA testing has shown the addition of PFF5-4203PLT, to reduce stress in the subframe by 22.5%.
Race Bushing Features:
- Black color bushing (95A durometer, +80% stiffer than original)
- Direct replacement
- Designed for track use
- Engineered using the highest quality polyurethane to minimize noise, vibration and harshness
- Stainless steel machined components
- Lifetime limited warranty
Note: Bushings are sold in the number required at a specified location. Purchasing quantity 1 will include enough bushings for the left and right location for a single vehicle.
Bushing Reference Part Number:
31352282790 / Bracket = 31352283190 / Plate = 31356765913

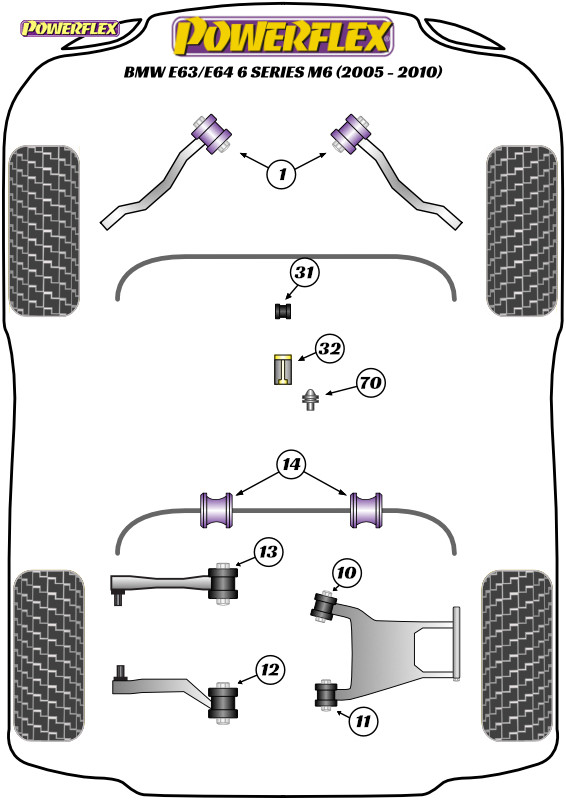

Bushing Location Diagram:
TECHNICAL DETAILS
PRODUCT WARRANTY
PowerflexUSA's limited Lifetime Warranty reflects confidence in both their products and also the history of fanatical customer service.
PowerflexUSA does not have a time-based warranty policy because issues that customers have are always an opportunity to learn. Where a problem has occurred due to incorrect fitting, we have always asked if the reason for the error was due to poor fitting instructions. When a part fails, we strive to understand if the part is being used outside of its design parameters. And like all manufacturing we have had the occasional material quality issue and in these cases, we have always replaced parts without question.
For warranty service please see the below instructions:
- Contact Powerflex USA directly via their online Warranty Page.
- Note the ViVA Performance Order ID associated with the bushing; including details of the installation and any changes made, with photos of the failed part.
- The Warranty only applies to parts purchased from ViVA Performance.
- The Warranty is limited to the replacement of suspension bushings supplied.
- There is no Warranty coverage for consequential part failure or labor for installation.
- The Warranty applies to the original purchaser only, no exceptions.
