DESCRIPTION
Improve your Audi model's handling performance, steering precision and gearbox shifting with a Powerflex PFF85-833 support Front Lower Engine Mount Hybrid Bushing (Large) B. PFF85-833 and PFF85-833BLK fits #30 in the Bushing Position Diagram below.
PFF85-833 replaces the lower half of the original bushing (OEM part number 5Q0198 037 B) and includes an insert to fill the voids in the upper bushing. This unique bushing has been designed to be fitted without removing the subframe from the vehicle, and avoids associated wheel alignment costs.
Replacement of the OEM stretch (torque to yield) bolt is highly recommended. The OEM part number for this bolt is N-912-010-01. The torque specification remains the same (95 ft-lb.).
Street Bushing Features:
- Street Bushings come in Yellow (70A durometer, 25% stiffer than original) or Purple (80A durometer, +30% stiffer than original) based on location
- Direct replacement
- Engineered using the highest quality polyurethane to minimize noise, vibration and harshness
- Stainless steel machined components
- Lifetime limited warranty
Race Bushing Features:
- Black color bushing (95A durometer, +80% stiffer than original)
- Direct replacement
- Designed for track use
- Engineered using the highest quality polyurethane to minimize noise, vibration and harshness
- Stainless steel machined components
- Lifetime limited warranty
Note: Bushings are sold in the number required at a specified location. Purchasing quantity 1 will include enough bushings for the left and right location for a single vehicle.
Bushing Reference Part Number:
For mounting 5Q0198037B / 5Q0198037F

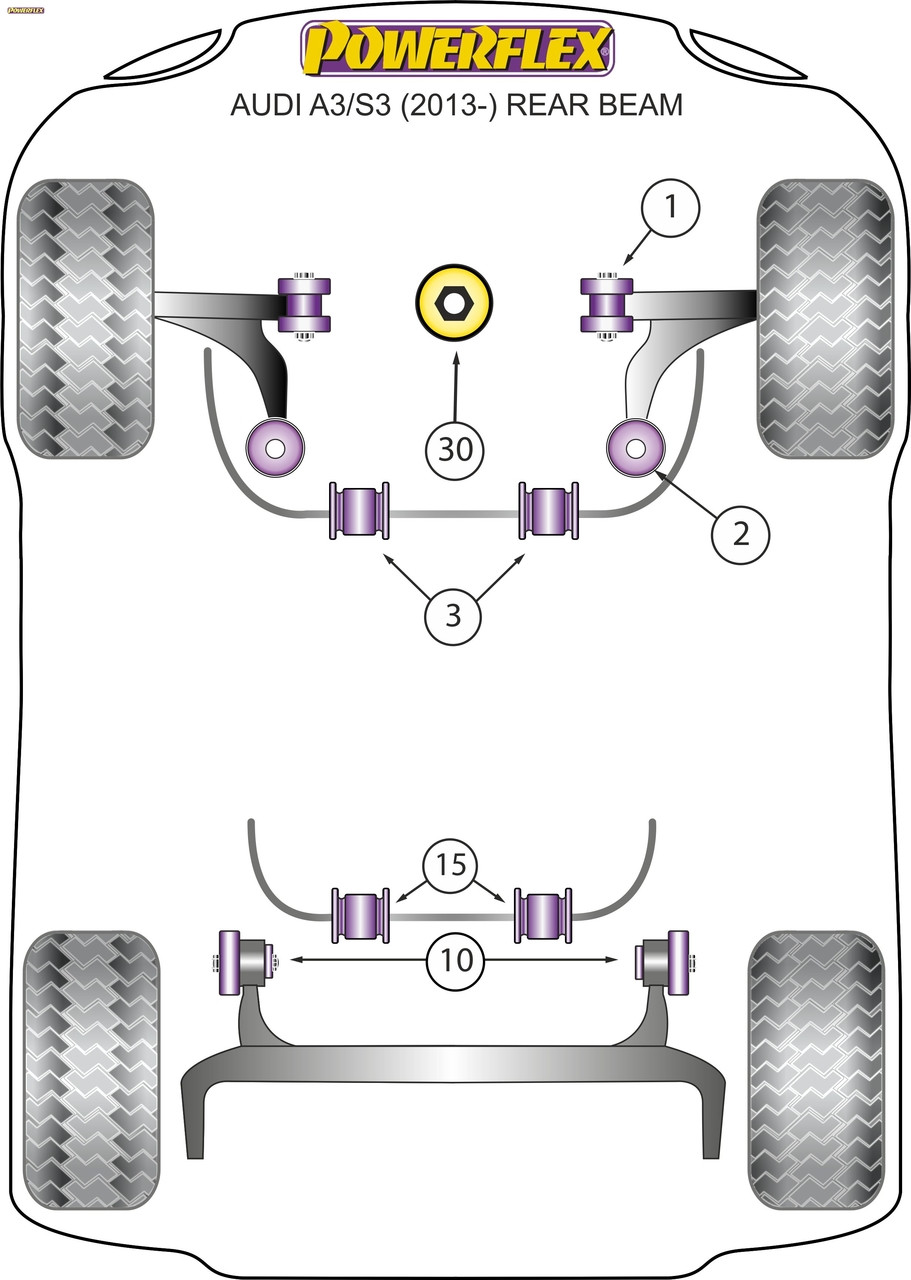

Bushing Location Diagram:
TECHNICAL DETAILS
PRODUCT WARRANTY
PowerflexUSA's limited Lifetime Warranty reflects confidence in both their products and also the history of fanatical customer service.
PowerflexUSA does not have a time-based warranty policy because issues that customers have are always an opportunity to learn. Where a problem has occurred due to incorrect fitting, we have always asked if the reason for the error was due to poor fitting instructions. When a part fails, we strive to understand if the part is being used outside of its design parameters. And like all manufacturing we have had the occasional material quality issue and in these cases, we have always replaced parts without question.
For warranty service please see the below instructions:
- Contact Powerflex USA directly via their online Warranty Page.
- Note the ViVA Performance Order ID associated with the bushing; including details of the installation and any changes made, with photos of the failed part.
- The Warranty only applies to parts purchased from ViVA Performance.
- The Warranty is limited to the replacement of suspension bushings supplied.
- There is no Warranty coverage for consequential part failure or labor for installation.
- The Warranty applies to the original purchaser only, no exceptions.
