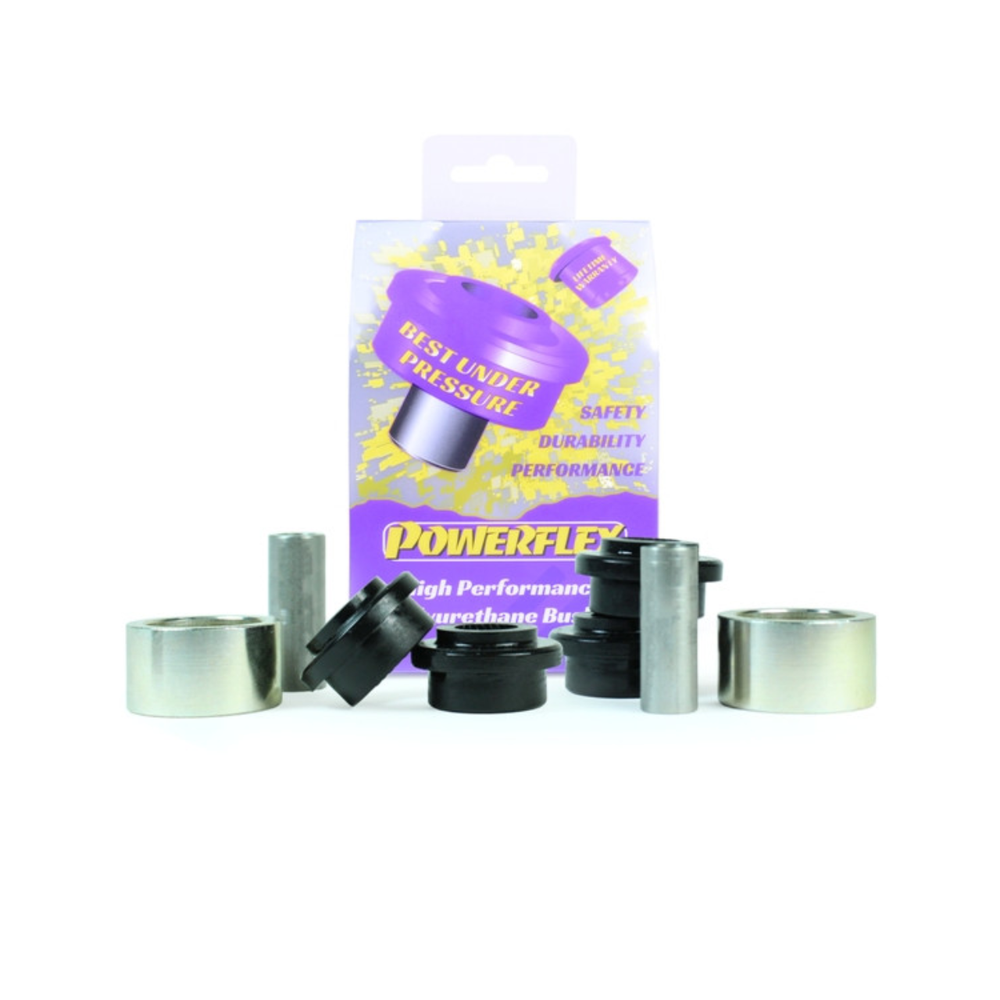

Powerflex PFR5-411 Rear Trailing Arm & Toe Adjustable Bushings, BMW E9X 3 Series, E8X 1 Series, 1M, X1

$146.38
$121.99
(You save $24.39)
  • SKU: PFR5-411
  • Availability: When in stock, ships in 1-2 business days
    • Powerflex PFR5-411 Rear Trailing Arm & Toe Adjustable Bushings, BMW E9X 3 Series, E8X 1 Series, 1M, X1
    Share This

    DESCRIPTION

    Improve your BMW's handling performance, steering precision and gearbox shifting with a Powerflex PFR5-411 bushing.

    For the M3, these only fit the outer position on the rear trailing arm (Diagram Reference #11)

    This kit will fit the following positions for non-M cars -

    • Inner and outer bushings for one rear trailing arm (Diagram Reference #11B). Two kits are needed in order to do both arms.
    • Inner and outer bushings for one rear toe arm (Diagram Reference #11A). Two kits are needed in order to do both arms.
    • Inner bushings (where the arm meets the chassis) for both rear upper control arms (Diagram Reference #11C). Only x1 kit is needed to do both sides of the car.

    In order to satisfy all of these positions, x5 sets of PFR5-411 will be needed.

    Race Bushing Features:

    • Black color bushing (95A durometer, +80% stiffer than original)
    • Direct replacement
    • Designed for track use
    • Engineered using the highest quality polyurethane to minimize noise, vibration and harshness
    • Stainless steel machined components
    • Lifetime limited warranty

    Note: Bushings are sold in the number required at a specified location. Purchasing quantity 1 will include enough bushings for the left and right location for a single vehicle.

    Bushing Reference Part Number:

    33326763092

    Bushing Location Diagram:

    PFR5-411

    TECHNICAL DETAILS

  • UPC: 5055676502964
  • Promotional Offers: 10% off Qty 3 or more
  • Unit of Measure: Sold as a Kit
  • Position: Rear

    • PRODUCT WARRANTY

    PowerflexUSA's limited Lifetime Warranty reflects confidence in both their products and also the history of fanatical customer service.

    PowerflexUSA does not have a time-based warranty policy because issues that customers have are always an opportunity to learn. Where a problem has occurred due to incorrect fitting, we have always asked if the reason for the error was due to poor fitting instructions. When a part fails, we strive to understand if the part is being used outside of its design parameters. And like all manufacturing we have had the occasional material quality issue and in these cases, we have always replaced parts without question.

    For warranty service please see the below instructions:

    • Contact Powerflex USA directly via their online Warranty Page.
    • Note the ViVA Performance Order ID associated with the bushing; including details of the installation and any changes made, with photos of the failed part.
    • The Warranty only applies to parts purchased from ViVA Performance.
    • The Warranty is limited to the replacement of suspension bushings supplied.
    • There is no Warranty coverage for consequential part failure or labor for installation.
    • The Warranty applies to the original purchaser only, no exceptions.
